Composites & Laminates

Aluminium composite panels, metal composites, honeycomb panels and compact laminates.

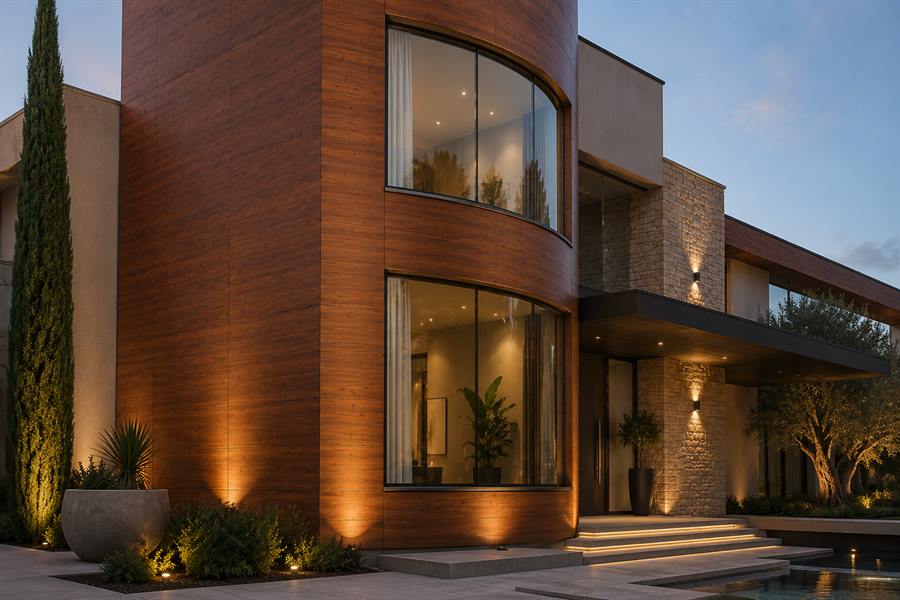

House facade clad in wood-effect high pressure laminate panels at dusk
Overview

Composites & Laminates

Composite panels give a flat, lightweight, dimensionally stable surface at facade scale. We stock the sheet; your fabricator routes, folds and installs it.

Key points

  • PE and fire rated A2 / B1 cores
  • PVDF coating with up to 20 year colour warranty
  • Standard and bespoke RAL, metallic and special effect colours
  • Panels held in the popular sizes for immediate release
  • Matching profiles, rivets and sealants available
The range

What we stock

Aluminium Composite Panels

The workhorse cladding panel for facades, signage and interior linings.

  • PE core
  • B1 fire retardant core
  • A2 non-combustible core
  • PVDF coated
  • Polyester (PE) coated
  • Solid RAL colours
  • Metallic and pearl
  • Brushed and mirror finish
  • Wood, stone and marble prints

Metal Composite Panels

Real metal skins bonded to a composite core for premium facades.

  • Stainless steel composite
  • Copper composite
  • Zinc composite
  • Titanium composite
  • Brass composite

Honeycomb & Lightweight Panels

Very flat, very light panels for large format cladding and interior elements.

  • Aluminium honeycomb
  • Stone faced honeycomb
  • Stainless faced honeycomb
  • Lightweight partition cores

Laminates

High pressure laminates for interior surfaces, exterior facades and washrooms.

  • HPL exterior grade
  • Compact laminate
  • Washroom cubicle grade
  • Chemical resistant laminate
  • Decorative interior HPL

Installation Accessories

The parts that finish a composite facade correctly.

  • Aluminium sub-frame profiles
  • Rivets and screws in matched colours
  • Neutral cure silicone sealants
  • Backer rod
  • Protective film
Technical

Specifications

Indicative figures for the items we hold. Exact availability is confirmed on every quotation, and non-stock sizes can be ordered directly from the mill.

Panel thickness3 mm, 4 mm and 6 mm
Aluminium skin0.21, 0.30, 0.40 and 0.50 mm
Standard widths1220, 1250 and 1500 mm
Standard lengths2440, 3200, 4050 and 5800 mm
WarrantyUp to 20 years on PVDF coating, subject to manufacturer terms
Related

Other product families

Metals

Stainless steel, aluminium, prepainted steel, copper, brass and bronze - held in sheets, coils, tubes, bars and profiles.

View range

Plastics, Acrylics & Signage Material

Polycarbonate, cast and extruded acrylic, PVC foam board, LED lights, power supplies, vinyl and reflectives.

View range

Architectural Products

Architectural mesh, expanded metal, perforated facades, louvers and balustrade systems.

View range

Ask for a quotation

Grade, finish, thickness and quantity - send what you have and we will price it.
